ogdf::sync_plan::SyncPlan::UndoOperation Class Reference

The information needed for undoing the changes a specific operation made to the graph while maintaining its embedding. More...

#include <ogdf/cluster/sync_plan/SyncPlan.h>

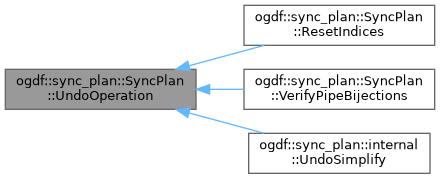

Inheritance diagram for ogdf::sync_plan::SyncPlan::UndoOperation:

Public Member Functions
virtual	~UndoOperation ()=default
virtual std::string	name () const
virtual std::ostream &	print (std::ostream &os) const =0
virtual void	undo (SyncPlan &pq)=0

Public Attributes
int	consistency_nr = -1

Friends
std::ostream &	operator<< (std::ostream &os, const SyncPlan::UndoOperation &undo_op)

Detailed Description

The information needed for undoing the changes a specific operation made to the graph while maintaining its embedding.

Definition at line 155 of file SyncPlan.h.

Constructor & Destructor Documentation

~UndoOperation()

virtual ogdf::sync_plan::SyncPlan::UndoOperation::~UndoOperation ( )

virtualdefault

Member Function Documentation

name()

virtual std::string ogdf::sync_plan::SyncPlan::UndoOperation::name ( ) const

virtual

print()

virtual std::ostream & ogdf::sync_plan::SyncPlan::UndoOperation::print ( std::ostream &  os ) const

pure virtual

Implemented in ogdf::sync_plan::SyncPlan::VerifyPipeBijections, ogdf::sync_plan::SyncPlan::ResetIndices, and ogdf::sync_plan::internal::UndoSimplify.

undo()

virtual void ogdf::sync_plan::SyncPlan::UndoOperation::undo ( SyncPlan &  pq )

pure virtual

Implemented in ogdf::sync_plan::SyncPlan::VerifyPipeBijections, ogdf::sync_plan::SyncPlan::ResetIndices, and ogdf::sync_plan::internal::UndoSimplify.

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream &  os, const SyncPlan::UndoOperation &  undo_op  )

friend

Member Data Documentation

consistency_nr

int ogdf::sync_plan::SyncPlan::UndoOperation::consistency_nr = -1

Definition at line 158 of file SyncPlan.h.

---

The documentation for this class was generated from the following file:

• include/ogdf/cluster/sync_plan/SyncPlan.h
