ogdf::oneplan_backtracking::OnePlanarization Class Reference

The graph corresponding to a partial solution for the 1-Planarity problem. More...

#include <ogdf/k-planarity/1-planarity_backtracking/OnePlanarization.h>

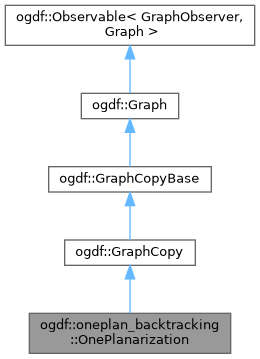

Inheritance diagram for ogdf::oneplan_backtracking::OnePlanarization:

Public Member Functions
	OnePlanarization ()=default
	OnePlanarization (const EdgePairPartition *ep)
	Associates the graph with ep and computes the planarization.
const EdgeSet &	crossingEdges () const
	Returns the set of all edges that are incident to a crossing vertex.
const NodeSet &	crossingVertices () const
	Returns the set of all crossing vertices in the graph.
const EdgeSet &	freeEdges () const
	Returns the set of all edges that may still cross some other edge.
const EdgePairPartition *	getEdgePairPartition () const
	Returns the associated EdgePairPartition.
void	getSaturatedSubgraph (GraphCopy &cp) const
	Computes the subgraph induced by uncrossable edges.
void	init (const EdgePairPartition *ep)
	Re-initializes the graph with ep.
bool	isPlanar () const
	Returns true if the graph is planar and thus represents a solution.
const EdgeSet &	kiteEdges () const
	Returns the set of all kite edges in the graph.
const EdgeSet &	remainingEdges () const
	Returns the set of all uncrossable edges that are neither crossing edges nor kite edges.
Public Member Functions inherited from ogdf::GraphCopy
	GraphCopy ()
	GraphCopy (const Graph &G)
	GraphCopy (const Graph *G)
	GraphCopy (const GraphCopy &other)
void	clear () override
	Removes all nodes and edges from this copy but does not break the link with the original graph.
GraphCopy &	operator= (const GraphCopy &other)
void	setOriginalGraph (const Graph &G)
	Re-initializes the copy using G, but does not create any nodes or edges.
void	setOriginalGraph (const Graph *G) override
	Associates the graph copy with G, but does not create any nodes or edges.
virtual void	setOriginalGraph (const Graph *G)=0
	Re-initializes the copy using G (which might be null), but does not create any nodes or edges.
const List< edge > &	chain (edge e) const
	Returns the list of edges coresponding to edge e.
edge	copy (edge e) const override
	Returns the first edge in the list of edges corresponding to edge e.
adjEntry	copy (adjEntry adj) const override
	Returns the adjacency entry in the copy graph corresponding to adj.
bool	isReversed (edge e) const
	Returns true iff edge e has been reversed.
bool	isReversedCopyEdge (edge e) const
	Returns true iff e is reversed w.r.t.
node	copy (node v) const
	Returns the node in the graph copy corresponding to v.
virtual edge	copy (edge e) const=0
	Returns the edge in the graph copy corresponding to e.
virtual adjEntry	copy (adjEntry adj) const=0
	Returns the adjacency entry in the graph copy corresponding to adj.
void	delEdge (edge e) override
	Removes edge e and clears the list of edges corresponding to e's original edge.
edge	split (edge e) override
	Splits edge e.
void	unsplit (edge eIn, edge eOut) override
	Undoes a previous split operation.
edge	newEdge (edge eOrig)
	Creates a new edge (v,w) with original edge eOrig.
void	setEdge (edge eOrig, edge eCopy)
	sets eOrig to be the corresponding original edge of eCopy and vice versa
void	setOriginalEmbedding () override
	Sets the embedding of the graph copy to the embedding of the original graph.
void	removePseudoCrossings ()
	Removes all crossing nodes which are actually only two "touching" edges.
bool	hasSameEdgesCrossings () const
	Returns whether there are two edges in the GraphCopy that cross each other multiple times.
bool	hasAdjacentEdgesCrossings () const
	Returns whether the GraphCopy contains at least one crossing of two adjacent edges.
bool	hasNonSimpleCrossings () const
	Returns whether the GraphCopy contains crossings that will result in a non-simple drawing.
void	removeNonSimpleCrossings (SListPure< edge > &edgesToCheck, DynamicDualGraph *dualGraph=nullptr)
	Removes all non-simple cossings involving edges from edgesToCheck (see hasNonSimpleCrossings() for a definition of non-simple crossings).
void	removeNonSimpleCrossings (DynamicDualGraph *dualGraph=nullptr)
	Removes all non-simple cossings (see hasNonSimpleCrossings() for a definition of non-simple crossings).
void	removeNonSimpleCrossings (node origNode, DynamicDualGraph *dualGraph=nullptr)
	Removes all non-simple cossings involving edges incident to origNode (see hasNonSimpleCrossings() for a definition of non-simple crossings).
void	insertEdgePath (edge eOrig, const SList< adjEntry > &crossedEdges)
	Re-inserts edge eOrig by "crossing" the edges in crossedEdges.
void	insertEdgePath (node srcOrig, node tgtOrig, const SList< adjEntry > &crossedEdges)
	Special version (for FixedEmbeddingUpwardEdgeInserter only).
void	removeEdgePath (edge eOrig)
	Removes the complete edge path for edge eOrig.
edge	insertCrossing (edge &crossingEdge, edge crossedEdge, bool rightToLeft)
	Inserts crossings between two copy edges.
edge	newEdge (node v, node w, int index=-1)
	Creates a new edge (v,w) and returns it.
edge	newEdge (node v, adjEntry adjTgt, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
edge	newEdge (adjEntry adjSrc, node w, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
edge	newEdge (adjEntry adjSrc, adjEntry adjTgt, Direction dir=Direction::after, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
template<typename S , typename T >
edge	newEdge (S src, Direction dirSrc, T tgt, Direction dirTgt, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
edge	newEdge (node v, adjEntry adj, edge eOrig, CombinatorialEmbedding &E)
	Creates a new edge with original edge eOrig in an embedding E.
void	insertEdgePathEmbedded (edge eOrig, CombinatorialEmbedding &E, const SList< adjEntry > &crossedEdges)
	Re-inserts edge eOrig by "crossing" the edges in crossedEdges in embedding E.
void	insertEdgePathEmbedded (edge eOrig, CombinatorialEmbedding &E, DynamicDualGraph &dual, const SList< adjEntry > &crossedEdges)
void	removeEdgePathEmbedded (CombinatorialEmbedding &E, edge eOrig, FaceSet &newFaces)
	Removes the complete edge path for edge eOrig while preserving the embedding.
void	removeEdgePathEmbedded (CombinatorialEmbedding &E, DynamicDualGraph &dual, edge eOrig)
void	consistencyCheck () const
	Asserts that this copy is consistent.
Public Member Functions inherited from ogdf::GraphCopyBase
	GraphCopyBase ()=default
	Constructs a GraphCopyBase associated with no graph.
	GraphCopyBase (const GraphCopyBase &other)=delete
	GraphCopyBase (GraphCopyBase &&other) noexcept=delete
node	copy (node v) const
	Returns the node in the graph copy corresponding to v.
void	createEmpty (const Graph &G)
	Re-initializes the copy using G, but does not create any nodes or edges.
void	delNode (node v) override
	Removes node v.
bool	getLinkCopiesOnInsert () const
const Graph *	getOriginalGraph () const
void	init (const Graph &G)
	Re-initializes the copy using G, creating copies for all nodes and edges in G.
void	init (const Graph *G)
	Re-initializes the copy using G (which might be null), creating copies for all nodes and edges in G.
bool	isDummy (adjEntry adj) const
	Returns true iff adj->theEdge() has no corresponding edge in the original graph.
bool	isDummy (edge e) const
	Returns true iff e has no corresponding edge in the original graph.
bool	isDummy (node v) const
	Returns true iff v has no corresponding node in the original graph.
node	newNode (int index=-1)
	Creates a new node and returns it.
node	newNode (node vOrig)
	Creates a new node in the graph copy with original node vOrig.
GraphCopyBase &	operator= (const GraphCopyBase &other)=delete
GraphCopyBase &	operator= (GraphCopyBase &&other) noexcept=delete
const Graph &	original () const
	Returns a reference to the original graph.
adjEntry	original (adjEntry adj) const
	Returns the adjacency entry in the original graph corresponding to adj.
edge	original (edge e) const
	Returns the edge in the original graph corresponding to e.
node	original (node v) const
	Returns the node in the original graph corresponding to v.
void	setLinkCopiesOnInsert (bool linkCopiesOnInsert)
	Whether insert(getOriginalGraph()) will automatically set copy and original.
void	setOriginalGraph (const Graph &G)
	Re-initializes the copy using G, but does not create any nodes or edges.
Public Member Functions inherited from ogdf::Graph
	Graph ()
	Constructs an empty graph.
	Graph (const Graph &copy)
	Constructs a graph that is a copy of G.
	Graph (Graph &&move)=delete
virtual	~Graph ()
	Destructor.
Graph &	operator= (const Graph &copy)
	Overwrites this graph to be a copy of G.
Graph &	operator= (Graph &&move)=delete
bool	empty () const
	Returns true iff the graph is empty, i.e., contains no nodes.
int	numberOfNodes () const
	Returns the number of nodes in the graph.
int	numberOfEdges () const
	Returns the number of edges in the graph.
int	maxNodeIndex () const
	Returns the largest used node index.
int	maxEdgeIndex () const
	Returns the largest used edge index.
int	maxAdjEntryIndex () const
	Returns the largest used adjEntry index.
node	firstNode () const
	Returns the first node in the list of all nodes.
node	lastNode () const
	Returns the last node in the list of all nodes.
edge	firstEdge () const
	Returns the first edge in the list of all edges.
edge	lastEdge () const
	Returns the last edge in the list of all edges.
node	chooseNode (std::function< bool(node)> includeNode=[](node) { return true;}, bool isFastTest=true) const
	Returns a random node.
edge	chooseEdge (std::function< bool(edge)> includeEdge=[](edge) { return true;}, bool isFastTest=true) const
	Returns a random edge.
template<class CONTAINER >
void	allNodes (CONTAINER &nodeContainer) const
	Returns a container with all nodes of the graph.
template<class CONTAINER >
void	allEdges (CONTAINER &edgeContainer) const
	Returns a container with all edges of the graph.
node	newNode (int index=-1)
	Creates a new node and returns it.
edge	newEdge (node v, node w, int index=-1)
	Creates a new edge (v,w) and returns it.
edge	newEdge (node v, adjEntry adjTgt, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
edge	newEdge (adjEntry adjSrc, node w, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
edge	newEdge (adjEntry adjSrc, adjEntry adjTgt, Direction dir=Direction::after, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
template<typename S , typename T >
edge	newEdge (S src, Direction dirSrc, T tgt, Direction dirTgt, int index=-1)
	Creates a new edge at predefined positions in the adjacency lists.
void	restoreAllEdges ()
	Restore all hidden edges and invalidate all HiddenEdgeSets.
void	unsplit (node u)
	Undoes a split operation.
node	splitNode (adjEntry adjStartLeft, adjEntry adjStartRight)
	Splits a node while preserving the order of adjacency entries.
node	contract (edge e, bool keepSelfLoops=false)
	Contracts edge e while preserving the order of adjacency entries.
void	move (edge e, adjEntry adjSrc, Direction dirSrc, adjEntry adjTgt, Direction dirTgt)
	Moves edge e to a different adjacency list.
void	moveTarget (edge e, node w)
	Moves the target node of edge e to node w.
void	moveTarget (edge e, adjEntry adjTgt, Direction dir)
	Moves the target node of edge e to a specific position in an adjacency list.
void	moveSource (edge e, node w)
	Moves the source node of edge e to node w.
void	moveSource (edge e, adjEntry adjSrc, Direction dir)
	Moves the source node of edge e to a specific position in an adjacency list.
edge	searchEdge (node v, node w, bool directed=false) const
	Searches and returns an edge connecting nodes v and w in time O( min(deg(v ), deg(w ))).
void	reverseEdge (edge e)
	Reverses the edge e, i.e., exchanges source and target node.
void	reverseAllEdges ()
	Reverses all edges in the graph.
template<class NODELIST >
void	collapse (NODELIST &nodesToCollapse)
	Collapses all nodes in the list nodesToCollapse to the first node in the list.
template<class ADJ_ENTRY_LIST >
void	sort (node v, const ADJ_ENTRY_LIST &newOrder)
	Sorts the adjacency list of node v according to newOrder.
template<class IT >
void	sort (node v, IT begin, IT end)
	Sorts the adjacency list of node v according to the range denoted by two iterators.
void	reverseAdjEdges (node v)
	Reverses the adjacency list of v.
void	moveAdj (adjEntry adjMove, Direction dir, adjEntry adjPos)
	Moves adjacency entry adjMove before or after adjPos.
void	moveAdjAfter (adjEntry adjMove, adjEntry adjAfter)
	Moves adjacency entry adjMove after adjAfter.
void	moveAdjBefore (adjEntry adjMove, adjEntry adjBefore)
	Moves adjacency entry adjMove before adjBefore.
void	reverseAdjEdges ()
	Reverses all adjacency lists.
void	swapAdjEdges (adjEntry adj1, adjEntry adj2)
	Exchanges two entries in an adjacency list.
int	genus () const
	Returns the genus of the graph's embedding.
bool	representsCombEmbedding () const
	Returns true iff the graph represents a combinatorial embedding.
void	consistencyCheck () const
	Asserts that this graph is consistent.
internal::GraphNodeRegistry &	nodeRegistry ()
	Returns a reference to the registry of node arrays associated with this graph.
const internal::GraphNodeRegistry &	nodeRegistry () const
	Returns a const reference to the registry of node arrays associated with this graph.
	operator const internal::GraphNodeRegistry & () const
internal::GraphEdgeRegistry &	edgeRegistry ()
	Returns a reference to the registry of edge arrays associated with this graph.
const internal::GraphEdgeRegistry &	edgeRegistry () const
	Returns a const reference to the registry of edge arrays associated with this graph.
	operator const internal::GraphEdgeRegistry & () const
internal::GraphAdjRegistry &	adjEntryRegistry ()
	Returns a reference to the registry of adjEntry arrays associated with this graph.
const internal::GraphAdjRegistry &	adjEntryRegistry () const
	Returns a const reference to the registry of adjEntry arrays associated with this graph.
	operator const internal::GraphAdjRegistry & () const
void	resetEdgeIdCount (int maxId)
	Resets the edge id count to maxId.
void	resetNodeIdCount (int maxId)
template<OGDF_NODE_ITER NI, OGDF_EDGE_ITER EI, bool copyEmbedding = true, bool copyIDs = false, bool notifyObservers = true>
std::pair< int, int >	insert (const NI &nodesBegin, const NI &nodesEnd, const EI &edgesBegin, const EI &edgesEnd, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given subgraph into this graph.
template<OGDF_NODE_ITER NI, OGDF_EDGE_FILTER EF, bool copyIDs = false, bool notifyObservers = true>
std::pair< int, int >	insert (const NI &nodesBegin, const NI &nodesEnd, const EF &edgeFilter, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given subgraph into this graph.
template<OGDF_NODE_LIST NL>
std::pair< int, int >	insert (const NL &nodeList, const EdgeSet &edgeSet, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given subgraph into this graph.
template<OGDF_NODE_LIST NL, OGDF_EDGE_LIST EL>
std::pair< int, int >	insert (const NL &nodeList, const EL &edgeList, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given subgraph into this graph.
std::pair< int, int >	insert (const CCsInfo &info, int cc, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given connected component cc into this graph.
std::pair< int, int >	insert (const Graph &G, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap)
	Inserts a copy of a given Graph G into this graph.
std::pair< int, int >	insert (const Graph &G)
	Inserts a copy of a given Graph G into this graph.
Public Member Functions inherited from ogdf::Observable< GraphObserver, Graph >
	Observable ()=default
	Observable (const Observable &copy)=delete
	If you want to copy a subclass of Observable, call the default Observable() constructor.
	Observable (Observable &&move)=delete
	If you want to move a subclass of Observable, call the default Observable() constructor.
virtual	~Observable ()
	Note that all Observers must already be removed once the destructor of this base class is invoked (e.g.
Observable &	operator= (const Observable &copy)=delete
Observable &	operator= (Observable &&move)=delete

Private Attributes
EdgeSet	m_crossingEdges
NodeSet	m_crossingVertices
const EdgePairPartition *	m_epp = nullptr
EdgeSet	m_freeEdges
EdgeSet	m_kiteEdges
EdgeSet	m_remainingEdges
NodeSet	m_saturatedVertices

Additional Inherited Members
Public Types inherited from ogdf::Graph
enum class	EdgeType { association = 0 , generalization = 1 , dependency = 2 }
	The type of edges (only used in derived classes). More...
enum class	NodeType { vertex = 0 , dummy = 1 , generalizationMerger = 2 , generalizationExpander = 3 , highDegreeExpander = 4 , lowDegreeExpander = 5 , associationClass = 6 }
	The type of nodes. More...
using	node_iterator = internal::GraphIterator< node >
	Provides a bidirectional iterator to a node in a graph.
using	edge_iterator = internal::GraphIterator< edge >
	Provides a bidirectional iterator to an edge in a graph.
using	adjEntry_iterator = internal::GraphIterator< adjEntry >
	Provides a bidirectional iterator to an entry in an adjacency list.
Public Attributes inherited from ogdf::Graph
internal::GraphObjectContainer< NodeElement >	nodes
	The container containing all node objects.
internal::GraphObjectContainer< EdgeElement >	edges
	The container containing all edge objects.
Protected Member Functions inherited from ogdf::GraphCopy
void	edgeInserted (void *userData, edge original, edge copy) override
	Callback notifying subclasses that insert() copied an edge.
void	removeAdjacentEdgesCrossing (adjEntry adj1, adjEntry adj2, DynamicDualGraph *dualGraph)
	Removes the crossing of the two adjacent edges adj1->theEdge() and adj2->theEdge().
void	removeSameEdgesCrossing (adjEntry adjFirstCrossing1, adjEntry adjFirstCrossing2, adjEntry adjSecondCrossing1, adjEntry adjSecondCrossing2, DynamicDualGraph *dualGraph)
	Removes the two crossings given by the adjEntries, assuming that both crossings stem from the same two edges.
void	removeUnnecessaryCrossing (adjEntry adj, DynamicDualGraph *dualGraph)
	Removes the pseudo crossing that adj belongs to.
void	removeUnnecessaryCrossing (adjEntry adjA1, adjEntry adjA2, adjEntry adjB1, adjEntry adjB2)
void	setOriginalEdgeAlongCrossings (adjEntry adjCopy1, adjEntry adjCopy2, node vCopy, edge eOrig1, edge eOrig2)
	Sets the original edges from adjCopy1 up to vCopy to eOrig2, and the original edges from adjCopy2 up to vCopy to eOrig1.
void	swapOriginalEdgesAtCrossing (adjEntry adjCopy1, adjEntry adjCopy2, DynamicDualGraph *dual=nullptr)
	Swaps the original edges from adjCopy1 up to the common node of {adjCopy1, adjCopy2} with the original edges from adjCopy2 up to the same common node.
void	swapOriginalEdgesBetweenCrossings (adjEntry adjFirstCrossing1, adjEntry adjFirstCrossing2, adjEntry adjSecondCrossing1, adjEntry adjSecondCrossing2, DynamicDualGraph *dual=nullptr)
	Swaps the original edges from adjFirstCrossing1 up to adjSecondCrossing1->theNode() with the original edges from adjFirstCrossing2 up to adjSecondCrossing2->theNode().
Protected Member Functions inherited from ogdf::GraphCopyBase
void	nodeInserted (void *userData, node original, node copy) override
	Callback notifying subclasses that insert() copied a node.
void *	preInsert (bool copyEmbedding, bool copyIDs, bool notifyObservers, bool edgeFilter, NodeArray< node > &nodeMap, EdgeArray< edge > &edgeMap, int *newNodes, int *newEdges) override
	Callback notifying subclasses that some graph is about to be insert() -ed.
Protected Member Functions inherited from ogdf::Graph
virtual void	postInsert (void *userData, int newNodes, int newEdges)
	Callback notifying subclasses that an insert() call has finished.
Protected Member Functions inherited from ogdf::Observable< GraphObserver, Graph >
void	clearObservers ()
const ListPure< GraphObserver * > &	getObservers () const
ListPure< GraphObserver * >::iterator	registerObserver (GraphObserver *obs) const
	Registers an observer.
void	unregisterObserver (typename ListPure< GraphObserver * >::iterator it) const
	Unregisters an observer.
Protected Attributes inherited from ogdf::GraphCopy
EdgeArray< List< edge > >	m_eCopy
	The corresponding list of edges in the graph copy.
EdgeArray< ListIterator< edge > >	m_eIterator
	The position of copy edge in the list.
Protected Attributes inherited from ogdf::GraphCopyBase
EdgeArray< edge >	m_eOrig
	The corresponding edge in the original graph.
bool	m_linkCopiesOnInsert
	Whether insert(getOriginalGraph()) will set copy and original.
const Graph *	m_pGraph = nullptr
	The original graph.
NodeArray< node >	m_vCopy
	The corresponding node in the graph copy.
NodeArray< node >	m_vOrig
	The corresponding node in the original graph.

Detailed Description

The graph corresponding to a partial solution for the 1-Planarity problem.

Represents the graph corresponding to a EdgePairPartition using a GraphCopy of the original input graph. Crossed edge pairs are replaced with crossing vertices and kite edges around crossing vertices are inserted. If this graph is planar, it represents a solution for the 1-Planarity problem.

Definition at line 51 of file OnePlanarization.h.

Constructor & Destructor Documentation

OnePlanarization() [1/2]

ogdf::oneplan_backtracking::OnePlanarization::OnePlanarization ( )

default

OnePlanarization() [2/2]

ogdf::oneplan_backtracking::OnePlanarization::OnePlanarization ( const EdgePairPartition *  ep )

inlineexplicit

Associates the graph with ep and computes the planarization.

Definition at line 65 of file OnePlanarization.h.

Member Function Documentation

crossingEdges()

const EdgeSet & ogdf::oneplan_backtracking::OnePlanarization::crossingEdges ( ) const

inline

Returns the set of all edges that are incident to a crossing vertex.

The four edges incident to each crossing vertex are associated with the two corresponding edges of the original graph.

Definition at line 91 of file OnePlanarization.h.

crossingVertices()

const NodeSet & ogdf::oneplan_backtracking::OnePlanarization::crossingVertices ( ) const

inline

Returns the set of all crossing vertices in the graph.

Definition at line 77 of file OnePlanarization.h.

freeEdges()

const EdgeSet & ogdf::oneplan_backtracking::OnePlanarization::freeEdges ( ) const

inline

Returns the set of all edges that may still cross some other edge.

Definition at line 94 of file OnePlanarization.h.

getEdgePairPartition()

const EdgePairPartition * ogdf::oneplan_backtracking::OnePlanarization::getEdgePairPartition ( ) const

inline

Returns the associated EdgePairPartition.

Definition at line 71 of file OnePlanarization.h.

getSaturatedSubgraph()

void ogdf::oneplan_backtracking::OnePlanarization::getSaturatedSubgraph ( GraphCopy &  cp ) const

inline

Computes the subgraph induced by uncrossable edges.

Definition at line 100 of file OnePlanarization.h.

init()

void ogdf::oneplan_backtracking::OnePlanarization::init

(

const EdgePairPartition *

ep

)

Re-initializes the graph with ep.

isPlanar()

bool ogdf::oneplan_backtracking::OnePlanarization::isPlanar ( ) const

inline

Returns true if the graph is planar and thus represents a solution.

Definition at line 74 of file OnePlanarization.h.

kiteEdges()

const EdgeSet & ogdf::oneplan_backtracking::OnePlanarization::kiteEdges ( ) const

inline

Returns the set of all kite edges in the graph.

Kite edges are non-edges of the original graph between the endpoints of crossed edge pairs. Note that these edges are not associated with edges of the original graph.

Definition at line 84 of file OnePlanarization.h.

remainingEdges()

const EdgeSet & ogdf::oneplan_backtracking::OnePlanarization::remainingEdges ( ) const

inline

Returns the set of all uncrossable edges that are neither crossing edges nor kite edges.

Definition at line 97 of file OnePlanarization.h.

Member Data Documentation

m_crossingEdges

EdgeSet ogdf::oneplan_backtracking::OnePlanarization::m_crossingEdges

private

Definition at line 57 of file OnePlanarization.h.

m_crossingVertices

NodeSet ogdf::oneplan_backtracking::OnePlanarization::m_crossingVertices

private

Definition at line 55 of file OnePlanarization.h.

m_epp

const EdgePairPartition* ogdf::oneplan_backtracking::OnePlanarization::m_epp = nullptr

private

Definition at line 53 of file OnePlanarization.h.

m_freeEdges

EdgeSet ogdf::oneplan_backtracking::OnePlanarization::m_freeEdges

private

Definition at line 58 of file OnePlanarization.h.

m_kiteEdges

EdgeSet ogdf::oneplan_backtracking::OnePlanarization::m_kiteEdges

private

Definition at line 56 of file OnePlanarization.h.

m_remainingEdges

EdgeSet ogdf::oneplan_backtracking::OnePlanarization::m_remainingEdges

private

Definition at line 59 of file OnePlanarization.h.

m_saturatedVertices

NodeSet ogdf::oneplan_backtracking::OnePlanarization::m_saturatedVertices

private

Definition at line 54 of file OnePlanarization.h.

---

The documentation for this class was generated from the following file:

• include/ogdf/k-planarity/1-planarity_backtracking/OnePlanarization.h
