ogdf::HierarchyLevelsBase Class Reference

#include <ogdf/layered/CrossingMinInterfaces.h>

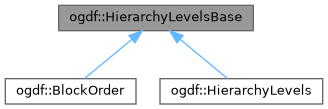

Inheritance diagram for ogdf::HierarchyLevelsBase:

Public Types
enum class	TraversingDir { downward , upward }

Public Member Functions
	HierarchyLevelsBase ()=default
	HierarchyLevelsBase (const HierarchyLevelsBase &)=default
virtual	~HierarchyLevelsBase ()
virtual const Array< node > &	adjNodes (node v, TraversingDir dir) const =0
	Returns the adjacent nodes of v.
int	calculateCrossings () const
	Computes the total number of crossings.
int	calculateCrossings (int i) const
	Computes the number of crossings between level i and i+1.
virtual const Hierarchy &	hierarchy () const =0
virtual int	high () const
	Returns the maximal array index of a level (= size()-1).
HierarchyLevelsBase &	operator= (const HierarchyLevelsBase &)=default
virtual const LevelBase &	operator[] (int i) const =0
	Returns the i-th level.
virtual int	pos (node v) const =0
	Returns the position of node v on its level.
virtual int	size () const =0
	Returns the number of levels.

Detailed Description

Definition at line 63 of file CrossingMinInterfaces.h.

Member Enumeration Documentation

TraversingDir

enum class ogdf::HierarchyLevelsBase::TraversingDir

strong

Enumerator
downward
upward

Definition at line 73 of file CrossingMinInterfaces.h.

Constructor & Destructor Documentation

HierarchyLevelsBase() [1/2]

ogdf::HierarchyLevelsBase::HierarchyLevelsBase ( )

default

HierarchyLevelsBase() [2/2]

ogdf::HierarchyLevelsBase::HierarchyLevelsBase ( const HierarchyLevelsBase &  )

default

~HierarchyLevelsBase()

virtual ogdf::HierarchyLevelsBase::~HierarchyLevelsBase ( )

inlinevirtual

Definition at line 71 of file CrossingMinInterfaces.h.

Member Function Documentation

adjNodes()

virtual const Array< node > & ogdf::HierarchyLevelsBase::adjNodes ( node  v, TraversingDir  dir  ) const

pure virtual

Returns the adjacent nodes of v.

Implemented in ogdf::BlockOrder, and ogdf::HierarchyLevels.

calculateCrossings() [1/2]

int ogdf::HierarchyLevelsBase::calculateCrossings

(

)

const

Computes the total number of crossings.

calculateCrossings() [2/2]

int ogdf::HierarchyLevelsBase::calculateCrossings

(

int

i

)

const

Computes the number of crossings between level i and i+1.

hierarchy()

virtual const Hierarchy & ogdf::HierarchyLevelsBase::hierarchy ( ) const

pure virtual

Implemented in ogdf::BlockOrder, and ogdf::HierarchyLevels.

high()

virtual int ogdf::HierarchyLevelsBase::high ( ) const

inlinevirtual

Returns the maximal array index of a level (= size()-1).

Reimplemented in ogdf::HierarchyLevels.

Definition at line 85 of file CrossingMinInterfaces.h.

operator=()

HierarchyLevelsBase & ogdf::HierarchyLevelsBase::operator= ( const HierarchyLevelsBase &  )

default

operator[]()

virtual const LevelBase & ogdf::HierarchyLevelsBase::operator[] ( int  i ) const

pure virtual

Returns the i-th level.

Implemented in ogdf::BlockOrder, and ogdf::HierarchyLevels.

pos()

virtual int ogdf::HierarchyLevelsBase::pos ( node  v ) const

pure virtual

Returns the position of node v on its level.

Implemented in ogdf::BlockOrder, and ogdf::HierarchyLevels.

size()

virtual int ogdf::HierarchyLevelsBase::size ( ) const

pure virtual

Returns the number of levels.

Implemented in ogdf::BlockOrder, and ogdf::HierarchyLevels.

---

The documentation for this class was generated from the following file:

• include/ogdf/layered/CrossingMinInterfaces.h
